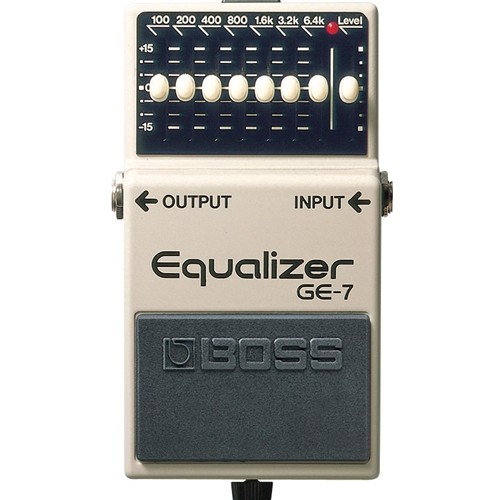

The GE-7 Equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.

• Compact EQ pedal with 7 bands of adjustable EQ sliders
• Allows for boost/cut of up to +/- 15dB per band
• Perfect as a "boost" pedal for solos, creating an alternate sound, or for eliminating feedback
• BOSS five-year warranty

Specifications:

• Nominal Input Level: -20 dBu
• Input Impedance: 470 k ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohm or greater
• Bypass: Buffered bypass
• Controls:
  • Level Control knob
  • Equalizer Control knob
  • 100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz
  • Pedal switch
• Indicator: CHECK indicator (Serves also as battery check indicator)
• Connectors:
  • INPUT jack: 1/4-inch phone type
  • OUTPUT jack: 1/4-inch phone type
  • DC IN jack
• Power Supply:
  • Carbon-zinc battery (9 V, 6F22)
  • Alkaline battery (9 V, 6LR61)
  • AC adaptor (PSA series: sold separately)
• Current Draw: 10 mA
• Expected battery life under continuous use:
  • Carbon: Approx. 37 hours
  • Alkaline: Approx. 67 hours
  • *These figures will vary depending on the actual conditions of use.
• Accessories:
  • Owner's Manual
  • Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and
  • "Information")
  • Carbon-zinc battery (9 V, 6F22)
• Options (sold separately): AC adaptor: PSA series
• Width: 73 mm, 2-7/8 inches
• Depth: 129 mm, 5-1/8 inches
• Height: 59 mm, 2-3/8 inches
• Weight (including battery): 450 g, 1 lb
