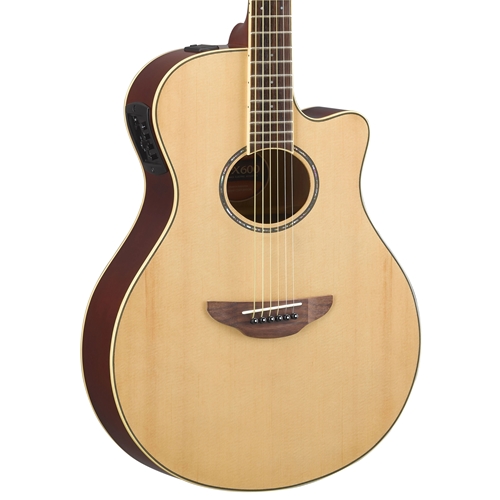

Body Depth and Bracing Pattern

The APX thinline body offers incredible comfort, top-fret access and a sound perfect for the stage. Specially-designed, non-scalloped X-type bracing maximizes body resonance for full, natural tone.

APX Sound Hole: Oval

The instantly recognizable APX sound hole thickens lower-mid response and gives a more strident, open low end.

Electric System: Piezo Pickup System for APX600

This pickup uses individual elements for each string to give an ultra-clear, ultra-wide bandwidth signal with far better dynamic response and tonal accuracy than a regular piezo pickup.

Specifications:

• Body Shape: Thinline Cutaway
• Scale Length: 634 mm (25")
• Body Length: 490 mm (19 5/16")
• Total Length: 1022 mm (40 1/4")
• Body Width: 384 mm (15 1/8")
• Body Depth: 80-90 mm (3 1/8" - 3 9/16")
• Nut Width: 43 mm (1 11/16”)
• String Spacing: 10 mm
• Top Material: Spruce
• Back Material: Locally-Sourced Tonewood **
• Side Material: Locally-Sourced Tonewood **
• Neck Material: Locally-Sourced Tonewood **
• Fingerboard Material: Rosewood
• Fingerboard Radius: R400 mm (15 3/4")
• Bridge Material: Rosewood
• Nut Material: Urea
• Saddle Material: Urea
• Bridge Pins: Black ABS with White Dot
• Tuners: Die-Cast Chrome (TM29T)
• Body Binding: Ivory + Black
• Sound Hole Inlay: ABS + Abalone
• Pickguard: None
• Body Finish: Gloss
• Neck Finish: Matte (Gloss for BL, VW Color Variations)
• Electronics: SYSTEM65 + SRT Piezo Pickup
• Controls: Vol/3-Band EQ/Tuner/Mid FQ
• Connections: LINE OUT
• Strings: .012/.016/.024/.032/.042/.053
• Accessories: Hex Wrench, 2 x AA Batteries
• Case: None
