• Balanced D.I. Output with Ground Lift
• Innovative Dual Path Routing
• Super Compact Design Fits Almost Anywhere
• 9V External Power Required (sold separately)

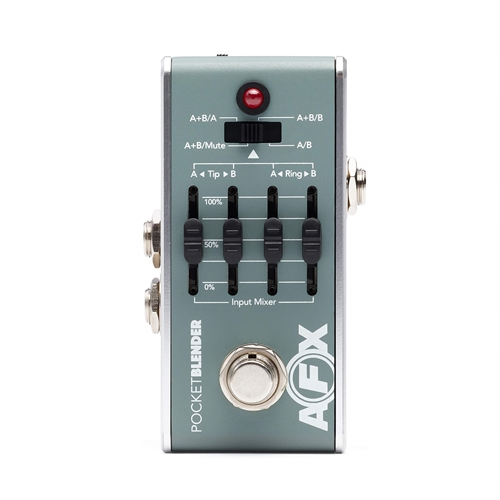

All The Essential Tools In One Compact Pedal

A level-adjustable A/B pedal. A built-in DI output with ground-lift. A boost pedal. An output Y-splitter. A two-channel mixer. The AFX Pocket Blender is the ultimateA/B/Y pedal combining four essential tools:

• an Input Mixer that lets you continuously adjust the level of audio source(s) connected to the TRS input
• a D.I. output featuring Fishman’s balanced line driver circuit that can be used to send to a house PA or amplifier
• an ABY output to split a signal or connect to one or two stage amps
• an A/B Mode switch determines the overall behavior when the footswitch is pressed

This Is The Classic Pocket Blender In A Small Footprint.

Without even touching the A/B features, it’s a mini two-channel mixer allowing you to connect two audio sources and blend them together. This is perfect for dual-source systems such as Fishman soundhole pickups that feature a mic or body pickup.

Build on the simple blender by setting up an “A mix” and a “B mix” where pressing the footswitch toggles between one mix and the other. You could balance your onboard pickup (50%) with your onboard mic (50%) on mix A. Then on mix B, which you use to take solos, you could boost the pickup to 75% while leaving the mic on 50%. All with a single stomp of the footswitch.

And it’s not only an A/B pedal with a mixer, it is the heart of Fishman’s unique AFX Dual Path ecosystem. By using common TRS audio cables, you assign effects on either tip or ring signal paths and essentially switch between two ‘scenes,’ each with mix levels you control.

Specifications:

• Model Number: PRO-AFX-DI2
• Audio I/O: 1/4" TRS input and outputs, 1/4" balanced DI output with ground lift
• DSP: N/A (all analog)
• Dimensions: 1.9" W x 3.8" D x 1.92" H (49mm W x 97mm D x 49mm H)
• Material: Durable aluminum enclosure
• Current Draw: 53mA, typical
• Power: 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative
