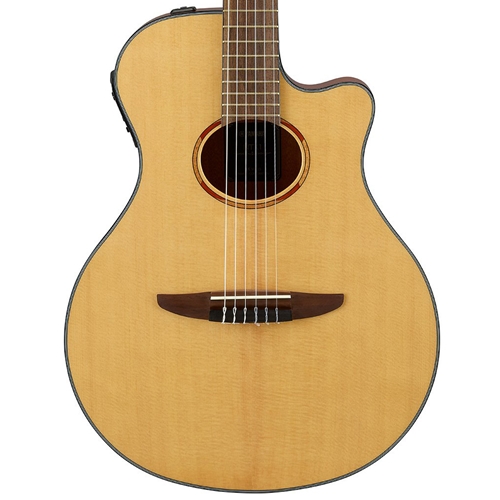

The NTX1 acoustic-electric, nylon-string guitar’s modern looks and comfortable neck profile enable electric guitarists and steel-string players to easily explore the world of nylon-string playing, while strap buttons and exceptional amplified sound make it especially appealing to performing guitarists.

14th Fret Neck Joint

Thinner neck shape like that on a steel string acoustic.

The fingerboard measures 48mm at the nut and 57mm at the joint.

Thin Body

An 80-90mm body depth and elliptical soundhole deliver a clear, smooth high-end response.

Headstock Design

The striking head design blends traditional design with contemporary cues and powerful imagery setting the NX Series apart from the rest.

High precision machine heads offer tuning ease.

Warm Wood Rosette

The sound hole is decorated with an original inlay design of mahogany, padauk, and abalone. The NCX Series uses a round hole shape (left) while the NTX Series is elliptical (right).

Smiling Bridge

This distinct bridge design is atrait of the NX series.

Specifications:

• Body Shape: APX Shape
• Scale Length: 650 mm (25 9/16”)
• Body Length: 490 mm (19 5/16")
• Total Length: 1026 mm (40 3/8")
• Body Width: 384 mm (15 1/8")
• Body Depth: 80-90 mm (3 1/8" - 3 9/16")
• Nut Width: 48 mm (1 7/8")
• String Spacing: 10.6 mm
• Top Material: Solid Sitka Spruce
• Back Material: Nato or Okume
• Side Material: Nato or Okume
• Neck Material: Nato
• Fingerboard Material: Walnut
• Fingerboard Radius: R600 mm (23 5/8")
• Bridge Material: Ebony + Walnut
• Nut Material: Urea
• Saddle Material: Urea
• Bridge Pins: None
• Tuners: Chrome w/ Matte Black Shaft (RM1188NB-B06)
• Body Binding: Black + White
• Sound Hole Inlay: Mahogany + Padauk
• Pickguard: None
• Body Finish: Gloss
• Neck Finish: Matte
• Electronics: Undersaddle 3-Band EQ Preamp with Tuner
• Controls: Vol/3-band EQ/Adjustable Mid Frequency/Tuner
• Connections: LINE OUT
• Strings: Medium (Yamaha S10)
• Accessories: Hex Wrench
• Case: None
